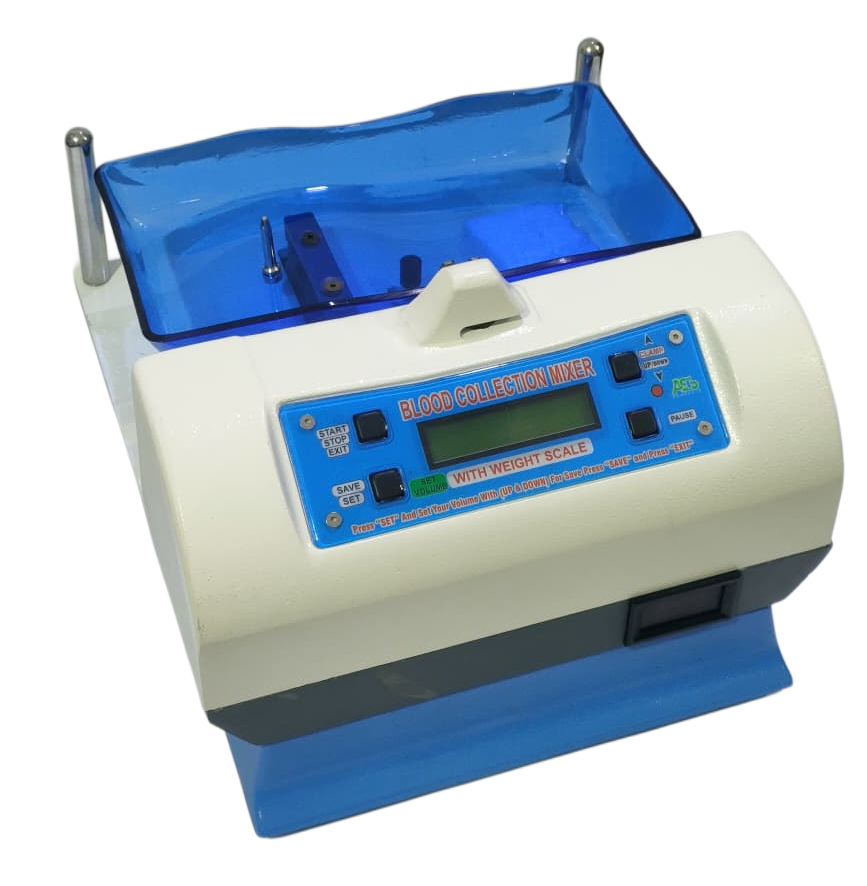

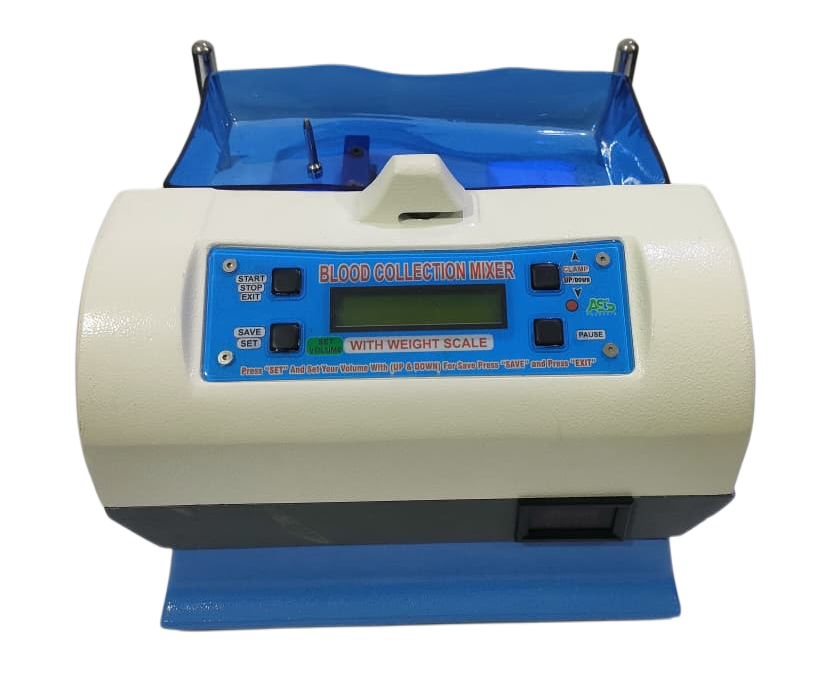

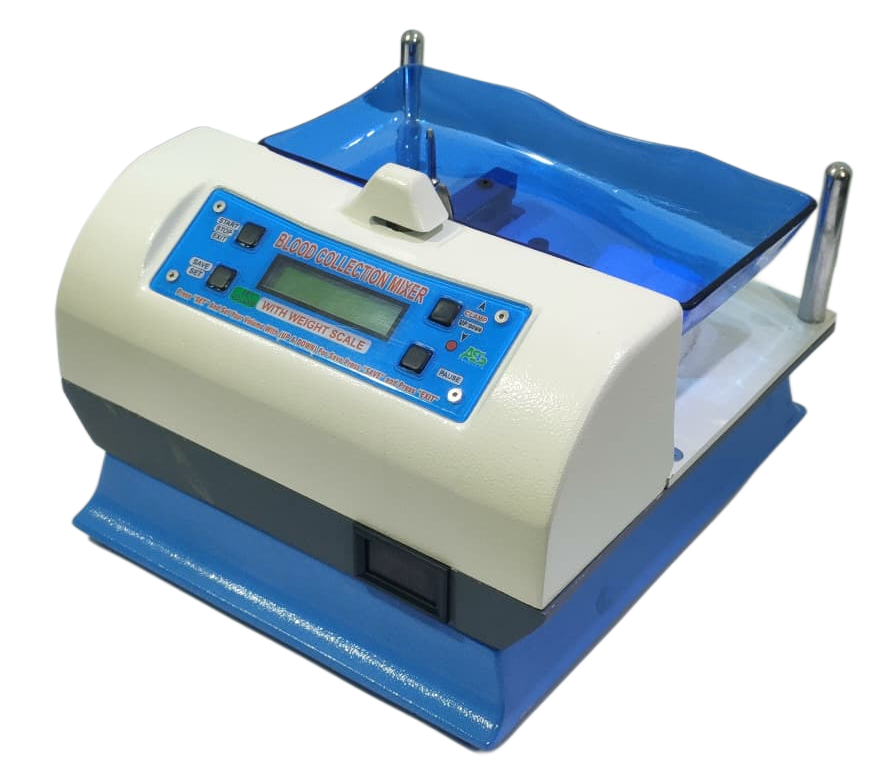

Blood Collection Mixer With Scale
The HEMO MIXER 32A is a specialized medical device designed to gently and continuously mix blood bags immediately after collection, preventing coagulation and ensuring the blood remains homogeneous for processing and storage.
Detailed Specifications
- Model: HEMO MIXER 32A
- Power Requirements: 115/230 VAC (automatically switching or manually selectable), converted to 12V DC for internal operation
- Power Consumption: 1.5 Amps
- Measuring Range: Integrated weight scale for up to 500 mL blood bags
Mixing Action
- Type: Gentle Seesaw (rocking) Motion
- Speed: 16 cycles per minute (slow, steady motion ideal for blood mixing without damaging cells)
Alarm System
The device features a comprehensive alarm system for safety and process control, including:
- Under Weight / Over Weight: Alerts if the blood bag is too light or too heavy (exceeds 500 mL)
- Setup Error: Indicates incorrect configuration
- Abnormal Blood Flow: Detects possible kinks or flow problems
- Data Input Error: Flags invalid data entries
- Time Over: Alerts when the preset mixing time has ended
- Abnormal Clock: Signals internal clock malfunction
Construction
Main body made of durable metal for stability and longevity in clinical environments.
Dimensions
- Length: 265 mm
- Width: 270 mm
- Height: 180 mm
Key Features and Inferences
- Integrated Scale: Monitors blood volume in real-time during collection
- Gentle Mixing: Ensures homogeneous mixing with anticoagulants without hemolysis
- Professional Use: Ideal for blood banks, donation centers, and hospital phlebotomy stations
- Process Safety: Alarms immediately flag any deviations for product and donor protection
Blood Collection Mixer With Scale
This is a dual-function device that combines a blood bag agitator with an integrated electronic weighing scale. During blood donation, it is critical to continuously mix the collected blood with the anticoagulant inside the bag while simultaneously measuring the precise volume being drawn. This machine performs both actions automatically.
The oscillating platform keeps the blood moving gently to prevent clotting, while the digital readout shows the real-time weight or volume of the unit collected. The scale is calibrated to trip an alert, often audible and visual, once the target donation volume is reached (typically 350ml or 450ml). Its hygienic, flat platter design accommodates standard single, double, or triple bag systems and can be easily cleaned between uses.
